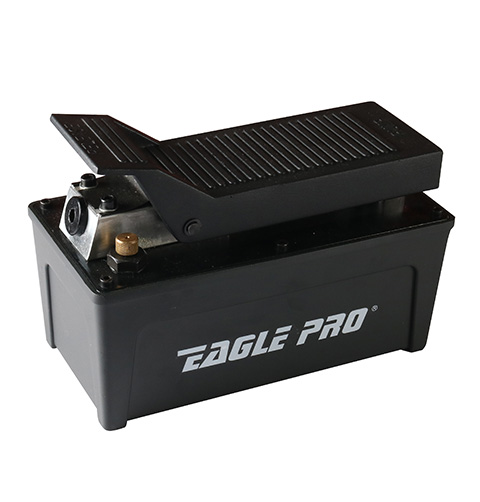

Model: E5102
Pressure Rating (PSI): :10000SPI
Air Pressure (Mpa): 0.6-1.0
Effective Oil Capacity (cu.in.): 98
Flow(cu.in./min) Noload Load: 49.5/7.6
Dimensions(in.) L W H: 10.3/5.4/7.3
Oil Tank Material:Aluminum
Operational Manner:Foot Pedal
N.W./G.W.(kg):9.0/9.5
Used with single acting hydraulic rams and other hydraulic tools.
Maximum working pressure 10,000psi.
Oil filler with integral safety valve minimizes the chance of damage to the reservoir bladder if overfilling occurs.
